Vintage 22sc (Deluxe Reverb style Head)


Extension cab sold separately.

  • Choose Your Style

    • $
  • Select Voltage
    • 0 $
    Jewel Light
    • 0 $
    Control Knobs
    • 0 $
    • $
  • Cover
    • $

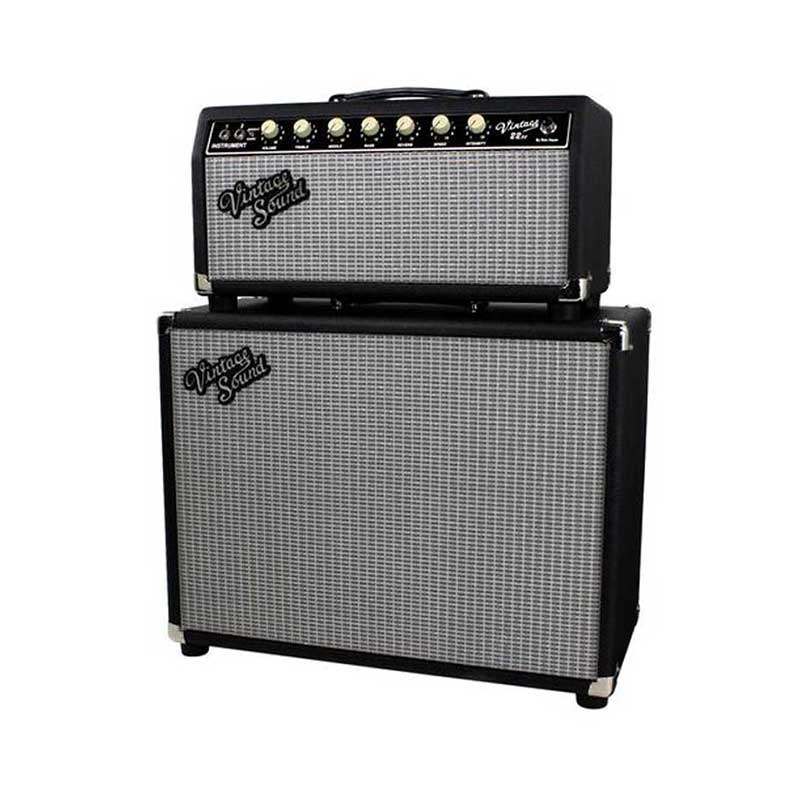

(Also pictured with an optional 1×12 Matching Extension cab)

Series: Vintage Series

MSRP* : $2,095.00
Model:  Vintage 22sc
Amplifier Type: Tube

Circuitry: Black Face AB763
Power Handling: 22 Watts into 8 Ohms
Inputs: One channel; 2 Inputs
Auxiliary Inputs:
RCA Footswitch Jack
Extension Speaker Jack
External Speaker Jack
Controls: Volume, Treble, Middle, Bass. Reverb, Speed, Intensity w/ Dwell control on back of chassis as 2nd EQ for Reverb


Cabinet Material:   Solid Pine Cabinet w/ Birch Plywood Baffle & upper and lower back panel
Pilot Light Jewel:   Blue (other colors available)
Knobs: See options
Handle: Leather Handle

Tube Driven Spring Reverb
Vibrato w/Diaz Tremolo mod

Rectifier: 5AR4 Rectifier Tube
Power Tubes:     (2)  6V6
Preamp Tubes:  (3)  12AX7, (2) 12AT7

Optional Accessories:
2-Button Footswitch
Custom Padded Cover
Head Dimensions:
Amplifier Depth: 8 5/8″
Amplifier Width: 19 7/8″
Amplifier Height: 9 1/2″
Amplifier Weight: 25 lbs.

The Vintage Sound Vintage 22sc is the amp that Leo *should* have built! For years guitar players both professional and amateur have praised the coveted Black Face AB763 circuitry found in the mid 60’s Deluxe Reverbs as the Holy Grail of tone. However, we often hear the following from many of them: 1) Why 2 channels? I only use the Main channel, and 2) Someone should offer a smaller single channel “grab and go” version!
